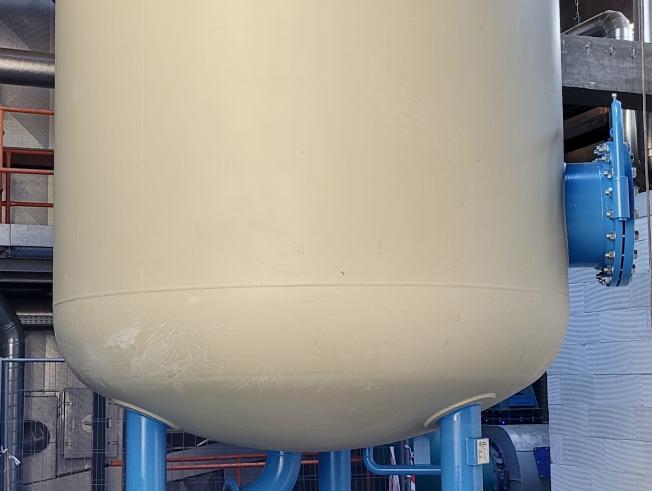

Project documentation for electrode boiler for the ancillary services, UCED Energy, Kutná Hora, Czechia

Owner's Engineer	Design and Studies	Installation and Supply	Diagnostics
✓	✓

Our company provided project documentation for electrode boiler 25MW for the ancillary services at the building permit level, documentation for construction execution and documentation of actual execution in all relevant professions (mechanical, civil, HVAC, electrical HV, LV and MaR).

BFS Industry activities:

• Development of the building permit's documentation
• Development of the project documentation for building construction
• Development of the as built documentation
• Provide documentation from suppliers
• Development of the itemized budget for project implementation
• Elaboration of the work implementation schedule
• Draft program of tests of a hot water electric boiler

Location: Kutná Hora, Czechia

Documentation: 09/2021 - 09/2022

Technical specifications:

• Electric boiler with voltage: 22 kV
• Heat output: 25 MW
• Cooling capacity od cooling towers: 25 MW
• Primary circuit: 120 °C, 6 bar
• Secondary circuit: 110°C, 7 bar
